LiDAR Transmitters

Flyer Download

Flexible LiDAR Illumination – Supports point, line, and flash illumination profiles for multiple LiDAR architectures including scanning and flash dToF systems.

High Peak Power with Short Pulses – Advanced EEL, VCSEL and DPSSL technologies deliver high peak power and ultra-short pulse widths (<5 ns) for precise distance measurement.

Brilliant Beam Profiles – Highly uniform line beams or wide field-of-view flash illumination for reliable sensing in different ranging requirements.

Designed for Advanced 3D Sensing – Ideal for automotive and industrial LiDAR, as well as machine vision, 3D sensing, and industrial detection systems.

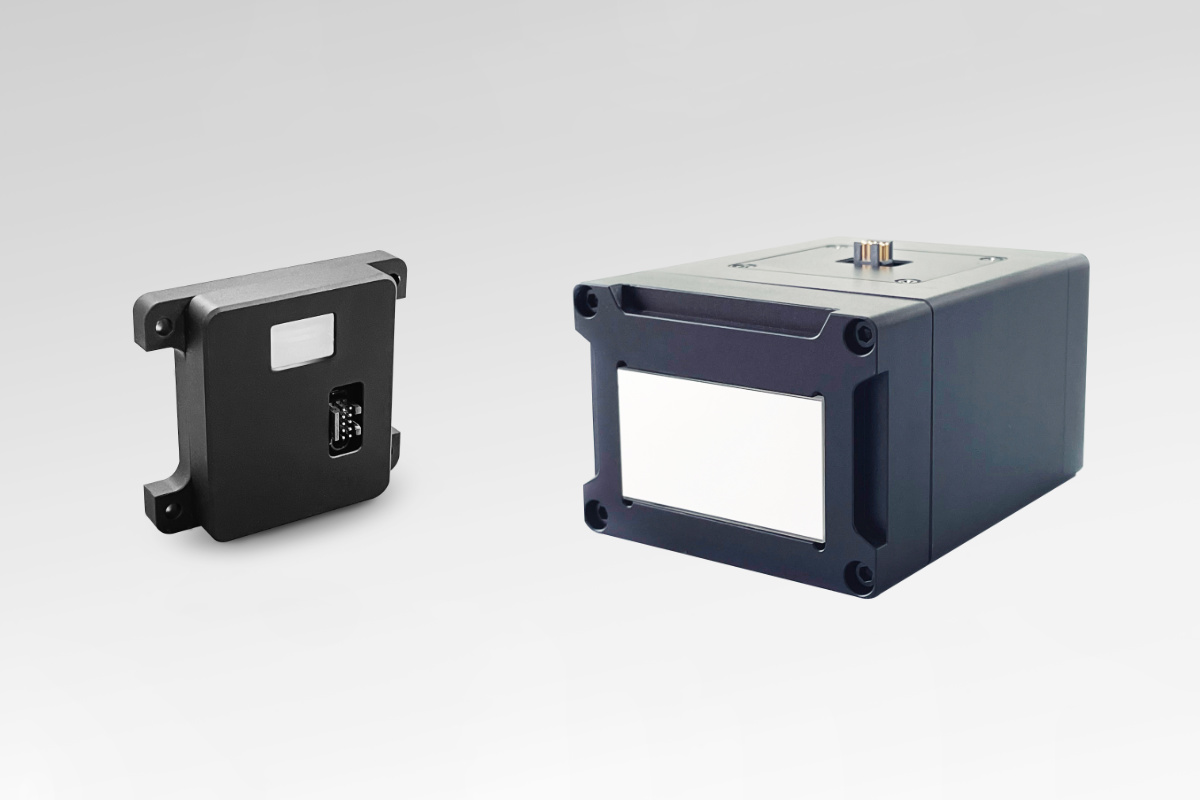

LiDAR Transmitters

Key Specifications



AL

AX

LE

LX

Laser Source

DPSSL

VCSEL

EEL

VCSEL

Beam Shape

Area

Area

Line

Line

Centroid Wavelength

1064±10 nm

940±5 nm

905±10 nm

905±10 nm

Peak Power

Megawatt level (Pulse energy >1.5 mJ @ 5 ns)

＞700W

＞700W

1000W (typ.)

Pulse Width

＜10 ns

＜5 ns

5 ns (typ.)

4 ns (typ.)

Operating Temperature

-40~80°C

-10~50°C

-10~50°C

-10~65°C

Storage Temperature

-40~105°C

-40~105°C

-40~105°C

-40~105°C

Field of Illumination

125°×25° / 60°×45° (typ., customizable)

125°×25° (typ., customizable)

~0.15°×~25.6° (typ., customizable)

0.12°×23° (typ., customizable)

Operating Voltage

＜3.0

High 20~90V
Low 7~12V

High 20~90V
Low 7~12V

High 15~35V
Low 7~12V

Pulse Frequency

30Hz

10~100kHz

10~75kHz

10~100kHz

Dimensions

38×24.6×20.65mm (typ.)

47.4×32×23.5mm (typ.)

44×45×15mm (typ.)

75.9×58×42mm (typ.)

Applications

Inspection

Inspection
Illumination

Illumination
Automotive LiDAR

Automotive LiDAR
